The all-new Yamaha 90-horsepower In-Line Four V MAX SHO® may be the smallest in the V MAX SHO® line, but it packs the biggest punch of any 90-horse on the water.
Its SOHC four-valve-per-cylinder design minimises weight while optimizing combustion. In fact, its lightweight design combined with 1.8L displacement makes the VMAX SHO 90 the class leader in torque and top speed. A reconfigured gear ratio also gives the VMAX SHO 90 greater holeshot and improved top-end speed over it's F90 sibling. The all-new Yamaha VMAX SHO 90, the latest addition to the VMAX family.
| Height | L: 516 [20.3] | X: 643 [25.3] |
|---|---|
| Weight | L: 160 | X: 164 |

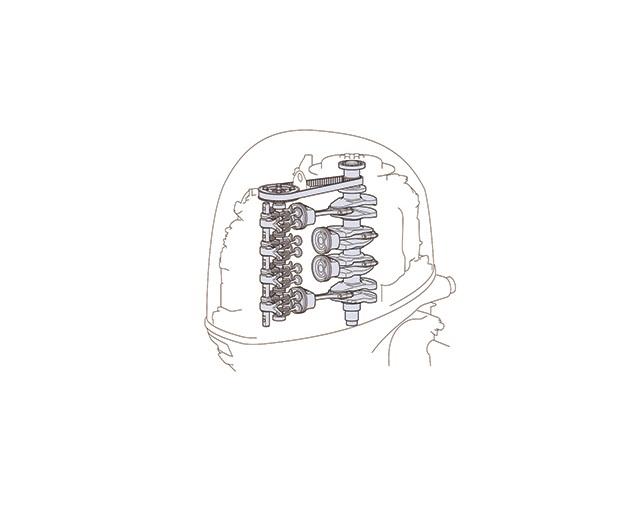

| Engine | 4-Stroke, 16 Valve SOHC In-line 4 Cylinder |
| Displacement | 1832.0 |

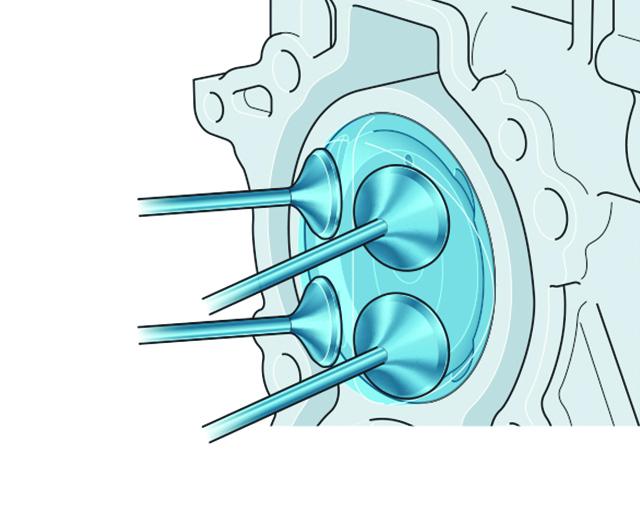

| Bore | 81 X 88.9 |
| Max RPM | 5000 - 6000 |
| Lubrication | Wet sump |

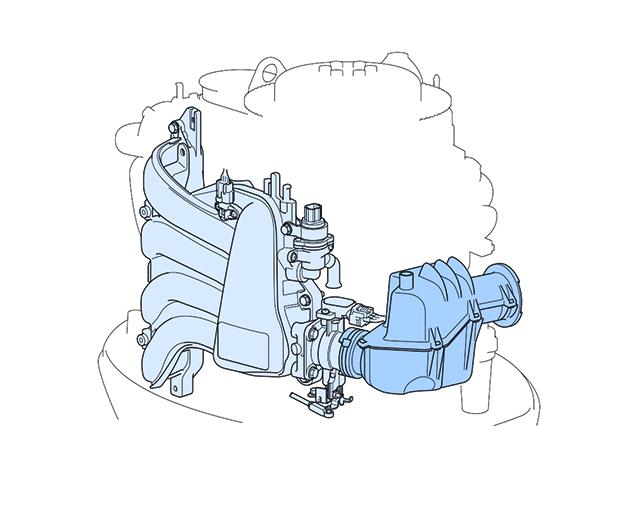

| Fuel | EFI |
| Ignition | TCI |
| Starter | Electric |

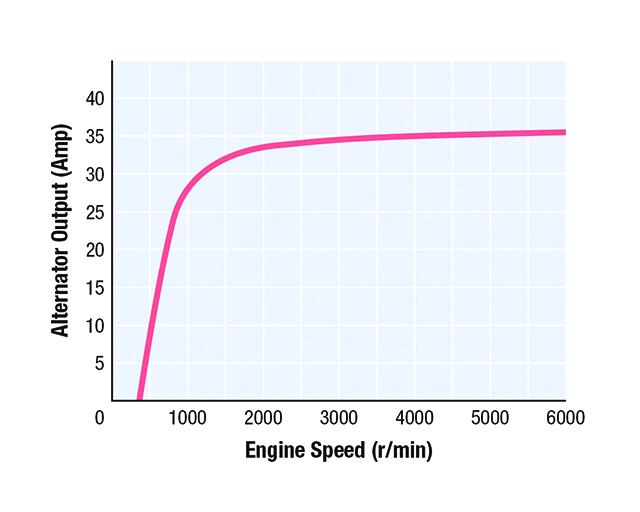

| Alternator | 12V - 35A with Rectifier Regulator |

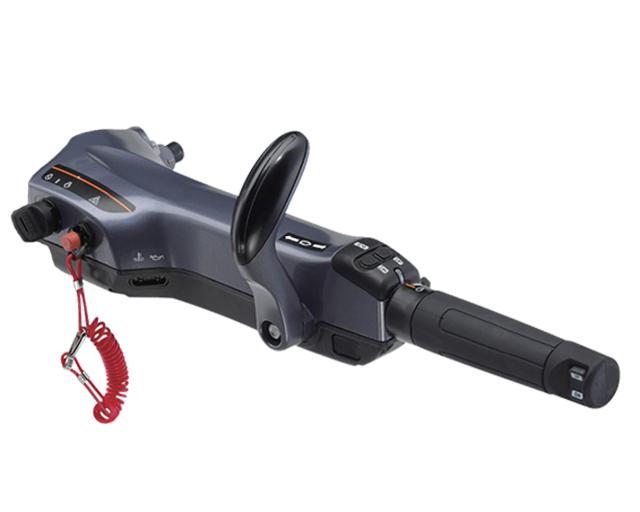

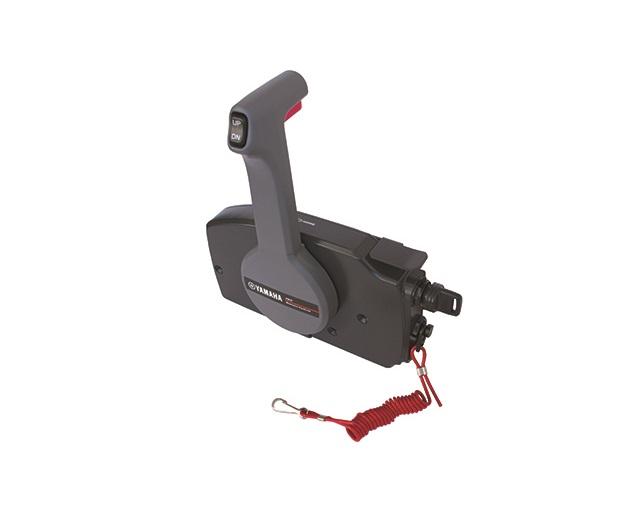

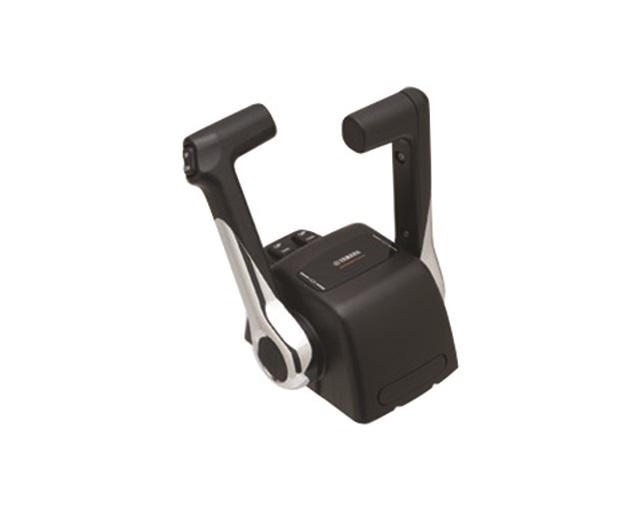

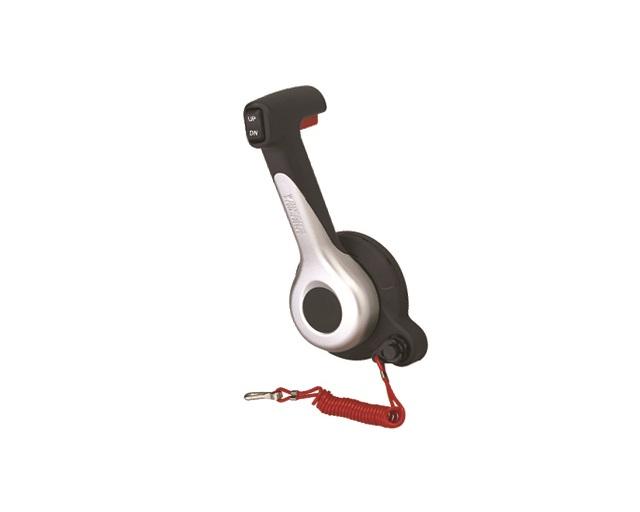

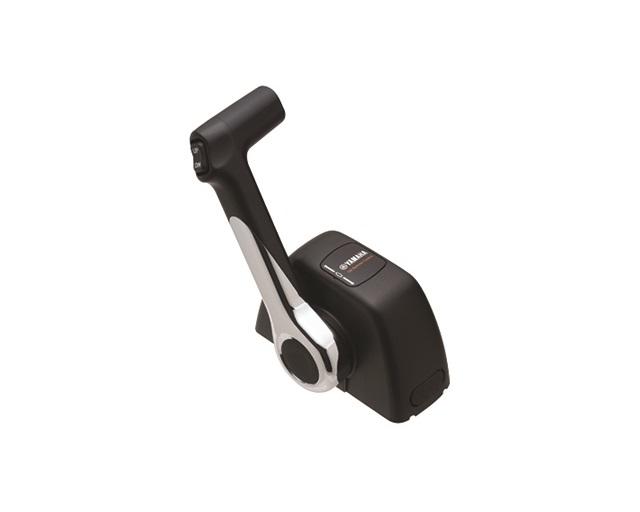

| Operation | Mechanical Control (Optional Tiller Handle Available) |

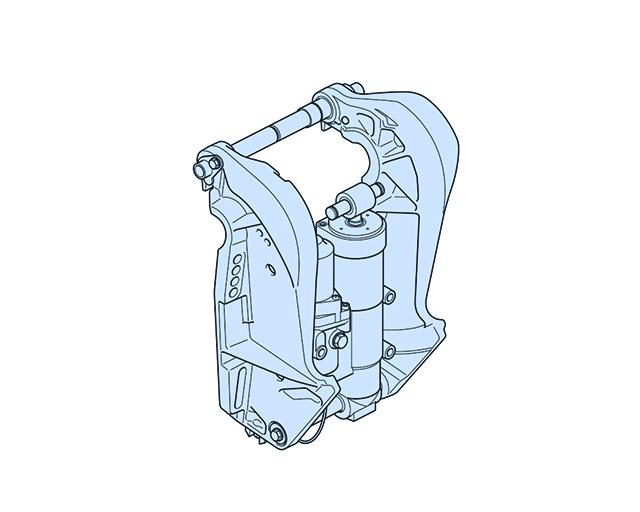

| Tilt | Power Trim & Tilt |

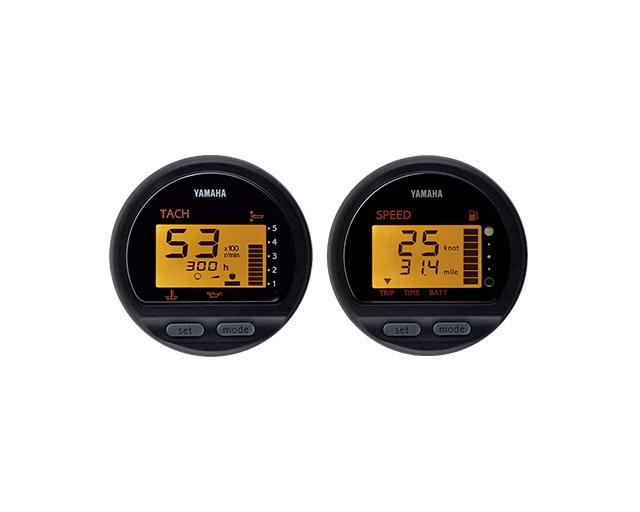

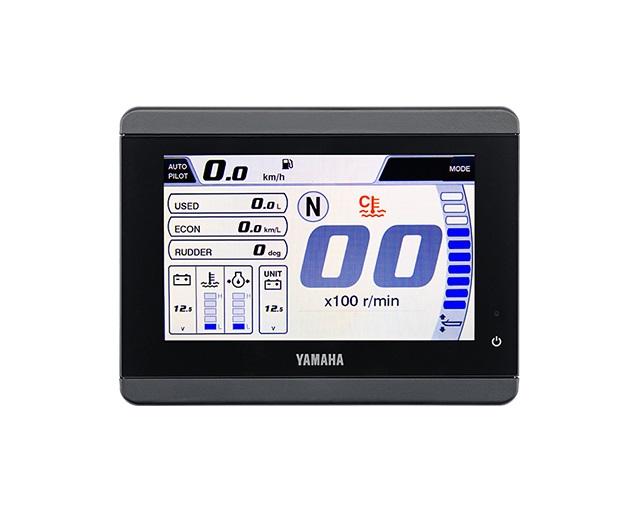

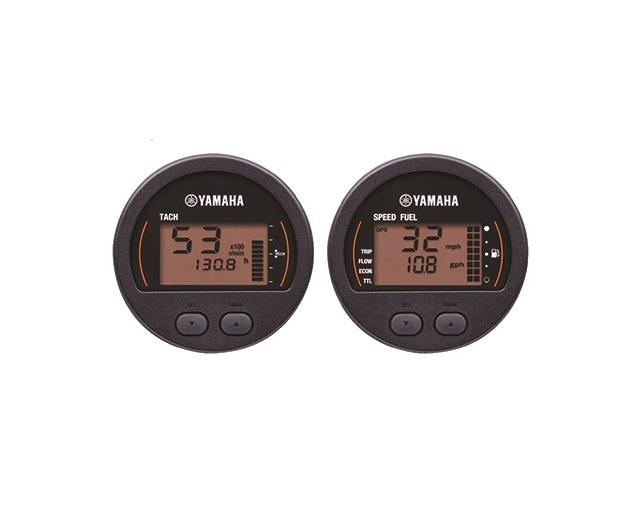

| Gauges | Optional |
| Network Gauges | Optional |
| Gear Ratio | 2:33:1 |
| Lpd Switch | 1 |
